SONY FH

[oldskool69]

Thanks for the comments on the surrounds. An FYI though, the ones I made for for square cone speakers for my Pioneer CK-W700. I did make surrounds for my JVC PC-3 as well.

The glue stick I used is for fabric and designed to withstand normal heat cycles including gettig washed. It just made it faster plus I knew it would be forever hidden.



[BoomboxLover48]

Thanks Freddie!

Thanks for the information!

I want to save the restoration of the surround link here.

viewtopic.php?f=47&t=10550&st=0&sk=t&sd=a



[DJBREEZY]

wow, love that sony system!! and that commercial, so classic

DJBREEZY, It is an amazing unit!

The sound quality is awesome!

I cleaned all the contacts with Deoxit. The nly problem is sooner or later I got to replac ethe woofer foam surrounds. That is something I need to plan on how to do it.

Hopefully I can hear one someday!! looks like quite a project you had on your hands.



[BoomboxLover48]

wow, love that sony system!! and that commercial, so classic

DJBREEZY, It is an amazing unit!

The sound quality is awesome!

I cleaned all the contacts with Deoxit. The nly problem is sooner or later I got to replac ethe woofer foam surrounds. That is something I need to plan on how to do it.

Hopefully I can hear one someday!! looks like quite a project you had on your hands.

Yes! Now waiting for the belts to come in. Hopefully I will get it on Wednesday. I will replace belts and lube the flywheel. The re-assebly I might push till the Friday Feb 1 evening.



[BoomboxLover48]

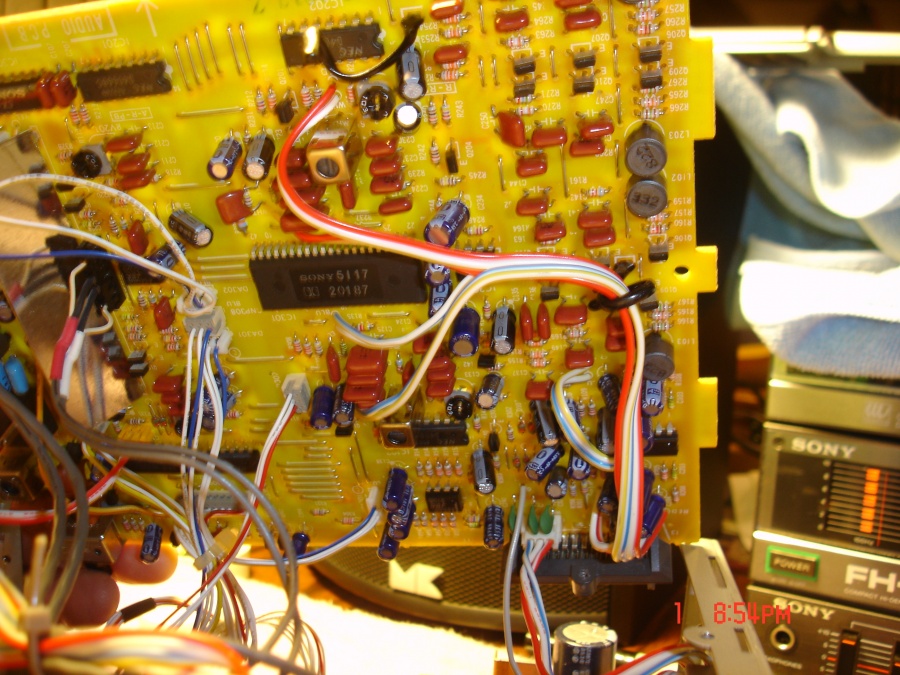

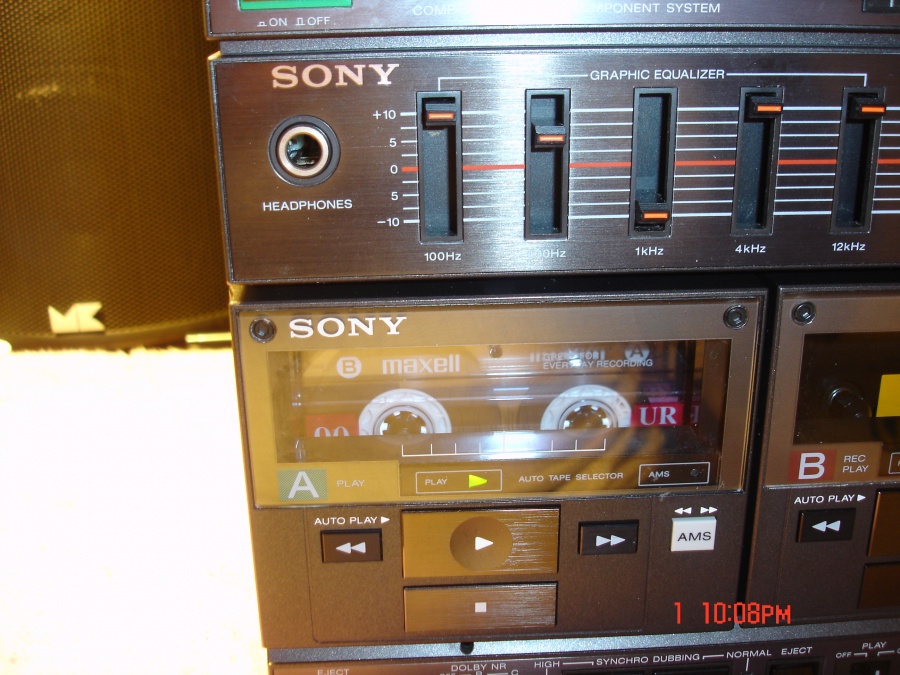

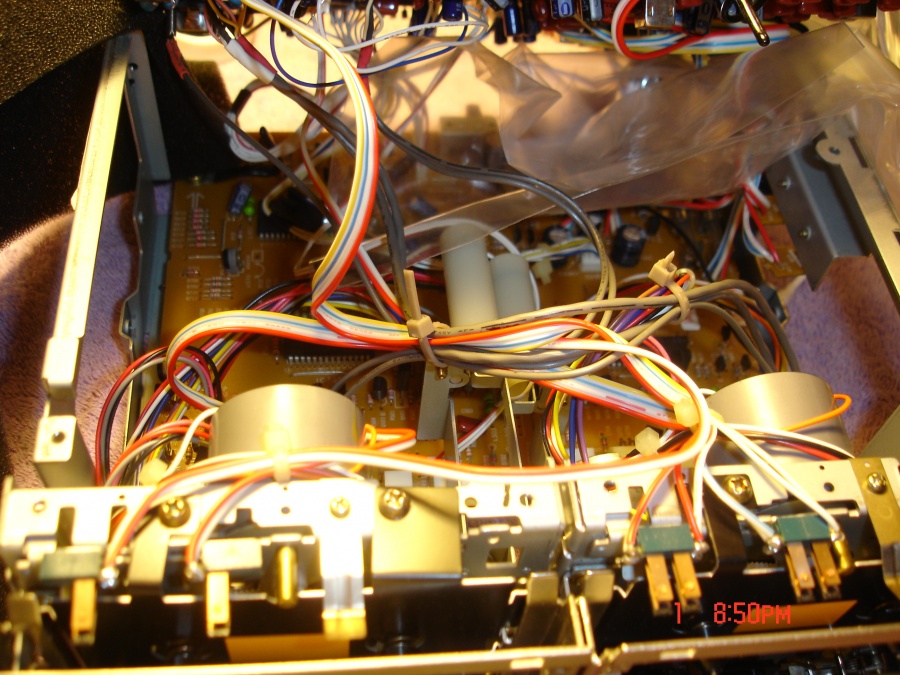

I was working on fixing the double cassette deck for several evenings and finally I finished it.
Replaced both belts and lubed it.
It is for sureone of the most complicated decks to work on.
Now it works like a charm.



[BoomboxLover48]

If any member come across with problems fixing the deck I have tonnes of pictures to help fix it.

The belt size is 7.0 inches. Actually I calculated it measuring the distance between the flywheel and the the other drive pulley and diameter of both. After getting the length I multiplied it with 0.95 to accomodate some tension from stretching. The calculation was right on teh nose.

The 7.0" belt was snug fit. I bought the FBS 7.0" from studio electronics.

Measure the diameter of each pulley/flywheel and divide by 2 to get the radius of the pulley
Measure the distance from the center of the pulley/flywheeel to the center of the other pulley

Total length of the belt = [(2 X distance from the center of the pulley/flywheel to the center of the other pulley + 3.14 X radius of the flywheel/pulley + 3.14 X radius of the other pulley)] X 0.95

Basically we are adding the 1/2 of the circumference (2Ï€r) of two pulleys, and adding twice the distance between the center of two pulleys, then reducing the length by 5% to get the snug fit.



[bklyn sound]

great info royce....box looks and must sound spectacular



[Ghettoboom767]

Nice FH Sony Royce!!
Great that you got the deck working!!
I'd like a FH someday but would have to have a battery pack!!



[BoomboxLover48]

great info royce....box looks and must sound spectacular

Yes Jimmy!

Now I am glued to this box.

I got the FH fever now!

Trust me they sound amazing!!!! But I need to make new surrounds for the speakers. I am now using an MK speaker (It is a beast) It rocks!

I love the double cassette! It is so good!



[BoomboxLover48]

Nice FH Sony Royce!!
Great that you got the deck working!!
I'd like a FH someday but would have to have a battery pack!!

Yes! It needs a battery pack.

Now I can give some advice on working on that double cassette deck. I learned a lot!
