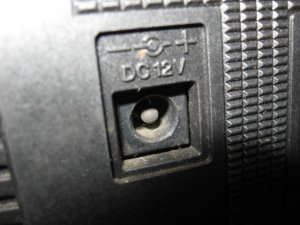

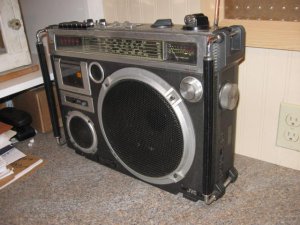

Hi. This is my first post ever. I bought a RC-550 and I need a power supply cord for it. It says "DC-12V". Here is a photo. Is this something I can find somewhere? Thanks if someone can help. It's working off of the eight D-Cells right now.
What kind of power supply cord do I need for RC-550?
- Thread starter 68skyblue
- Start date
![IMG_6906[1].JPG](/forum/data/attachments/38/38191-0459863cd828a699cdb6bb7822d94e77.jpg)
![IMG_6904[1].JPG](/forum/data/attachments/38/38192-e16371d4e2bad65ea0fb43c91a90fd6d.jpg)
there should be another plug-in location either on the back of the Boombox or on the side that you put a AC cord in , this will allow you to just use the cord to plug it in the wall mind you there's multiple voltages for these boomboxes depending on whether you live in North America or in Europe so you have to make sure that the voltage is set accordingly there should be a voltage selector on the back of the box. make sure you check the voltage before you plug it in.
if you find a socket on it that says AC then that means you can plug it in with a simple cord. if you don't have a cord then post a picture of the socket the cord plugs into and take it from there.
it's most likely already set to the right voltage you just have to find the right AC cord.
![IMG_6907[1].JPG](/forum/data/attachments/38/38196-1c7903775758bd00e43de6cc05c26c35.jpg)
6ft AC Power Cord Cable for Panasonic Boombox RX-DS101 CD Cassette AM FM w/ MASH | eBay
Panasonic Boombox RX-DS101 CD Cassette AM FM w/ MASH. We always make an effort to keep it upto date. UL Listed 2 Prong AC Power Cord. 1 x AbleGrid AC Power Cord. Cord Length: 6ft/1.8m. scores from you.The star-scores are very important to us.
www.ebay.com
This should work!
That's not standard the pins maybe two close together. It's actually a Rectangular plug similar to a shaver.
boomboxery.com

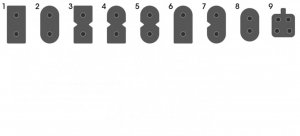

AC Plug Types
UPDATED Septemember 7, 2016 Every now and then there's a post about AC power cords and such, so I thought I would create a graphic that can help when someone is looking for a particular style plug. All you would need to do is say, "Hey, I need a 3 power cord" or "Does anybody have a 5 cord for...
boomboxery.com
#5 is what I selected and it will fit most of our boxes except Sony CFS 99 etc.That's not standard the pins maybe two close together. It's actually a Rectangular plug similar to a shaver.
AC Plug Types
UPDATED Septemember 7, 2016 Every now and then there's a post about AC power cords and such, so I thought I would create a graphic that can help when someone is looking for a particular style plug. All you would need to do is say, "Hey, I need a 3 power cord" or "Does anybody have a 5 cord for...
Those V shaped cuts on either side ( the gap on the top is close) should lift the battery cut off switch also.
I had luck with those types for many boomboxes.
Attachments
Last edited:
Can you measure the distance between the two pins on your box? These old boxes have pins closer together and not compatible with new cables.
Received the cord that I had ordered and the measurement confirms the slight differences discussed above. I warmed the radio a bit near a space heater and then inserted a needle-nosed pliers in between the pins to widen them a little. I inserted the cord with no problem and the radio sounds fine (batteries out). So I appreciate both responses; the practical one and the technically correct one. I'll post another question soon....I need to open it up.
That 0.75 mm clearance on either side of the holes make no difference at all to fit in. The female pins will easily wiggle/jiggle and accommodate in the plastic holder of the plug.
Why would you this is a so called Grail?That 0.75 mm clearance on either side of the holes make no difference at all to fit in. The female pins will easily wiggle/jiggle and accommodate in the plastic holder of the plug.
Because nothing will happen to the pins at all!
There is good tolerance.
It is not special like the pins of Sony CFS 99.
Most of all JVC AC cords for M90, M70 etc. will suit RC550.
JVC RC550 cord is not anything very special!
There is no need for overengineering!
Last edited:
that's why I like a boom box with built-in cord. seems to me a removable cord is the dumbest idea ever. if a cheap box can have a built-in cord why can't an expensive one.
