SHARP GF-7

[HAL_0]

Anyone have any idea how many amps this box draws from its DC adapter? I have a tidy example of the GF-7 but am searching the thrift shops for compatible adapter. There doesn't seem to be many adapters around with a negative pin polarity either.



[teamstress]

I'm using an adapter with 1.5 amp output and it works fine.



[HAL_0]

Thanks. This seems more likely than the 350 mA someone else suggested a while back. Any idea how many watts this box puts out? I don't have a spec sheet and I would be interested to know.



[redbenjoe]

I'm using an adapter with 1.5 amp output and it works fine.

do you have a USA link for these high amp adaptors ?
most at ratshack are 1 amp or far less



[mrp32]

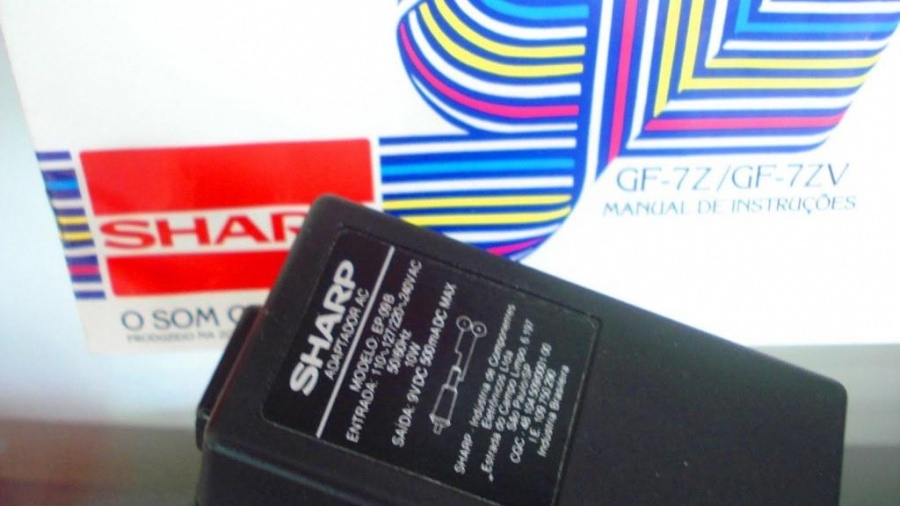

Here's an original adaptor rated at 500mA



[HAL_0]

Thanks. Can you post the spec sheet from the Instruction Manual?



[mrp32]

Specs



[teamstress]

I'm using an adapter with 1.5 amp output and it works fine.

do you have a USA link for these high amp adaptors ?
most at ratshack are 1 amp or far less

Mine is a Radio Shack adapter cat. no. 273-1771.



[HAL_0]

Thanks for the specs. My box is a GF-7A so I'm assuming the total output would be 10 watts or under. That means the box could be drawing upto 1200 mA or so. That helps.

René



[HAL_0]

Thread update. Finally got this baby working yesterday. Picked up a suitable adapter from a thrift shop for two bucks. Everything comes to him who waits. Total cost to date: two bucks and the bruised abdominal muscles I got leaning into the skip. It now has pride of place in my new workshop.



[docs]

GZ



[HAL_0]

Photo taken on my iPad. How do I upload it?



[mitsman]

When I use the headphone / line out jacks, the sound keeps coming out of the speakers. This is a real problem as I have a lot of tapes to digitize! Anyone know how (and if) can I mute the speakers when using phones / lineout?



[BoomboxLover48]

Careful with the polarity!
If you reverse it the box will die in a heartbeat!
Double check before you plug in.



[im_alan_partridge]

I have two of these and ive never even switched them on. But they look very nice
