RC-828 #3 arrived today.

[Spoofington]

Got another JVC RC-828L #3 today. Decent physical condition. Needs minor repairs and a volume slider. Most controls do work but I need to go through it more thoroughly. Will get pics tomorrow.

#4 RC-828JW should be on its way here soon! And a Lasonic TRC-918,too!



[bredgeo]

Looks clean!!!!!



Are ye going to make a pic of all your 282s together?????



[Spoofington]

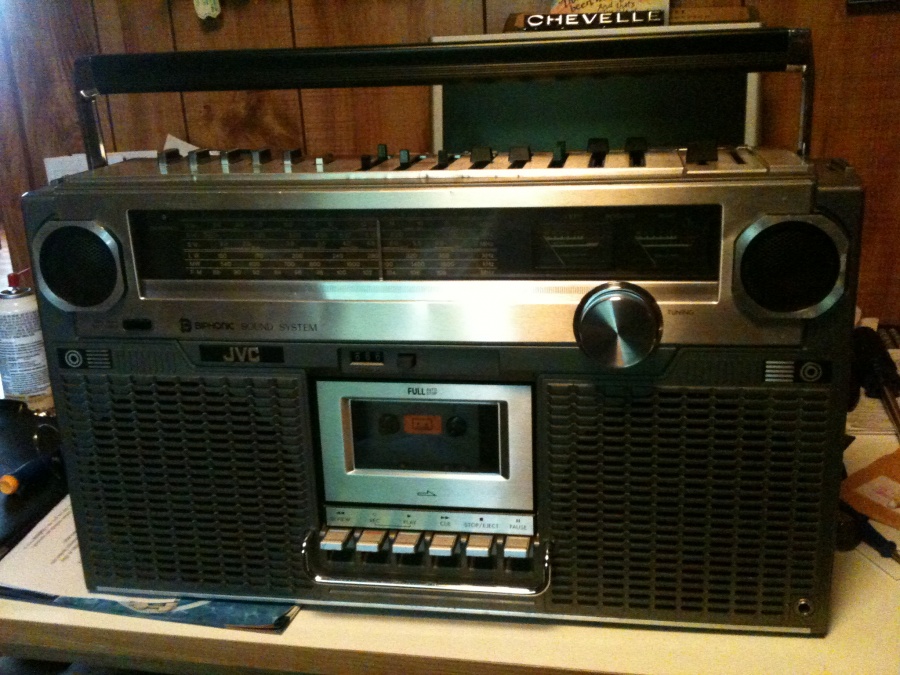

Current pic.



[soclose]

nice box!! man



[bredgeo]

She working okay now??????????? :'-(



[Spoofington]

She working okay now??????????? :'-(

I still need to get back into it and fix it up. I will get er going good again!



[Lasonic TRC-920]

Your going to have to post pictures when you have all three. Can you post a picture of the top control panel?



[Spoofington]

Your going to have to post pictures when you have all three. Can you post a picture of the top control panel?

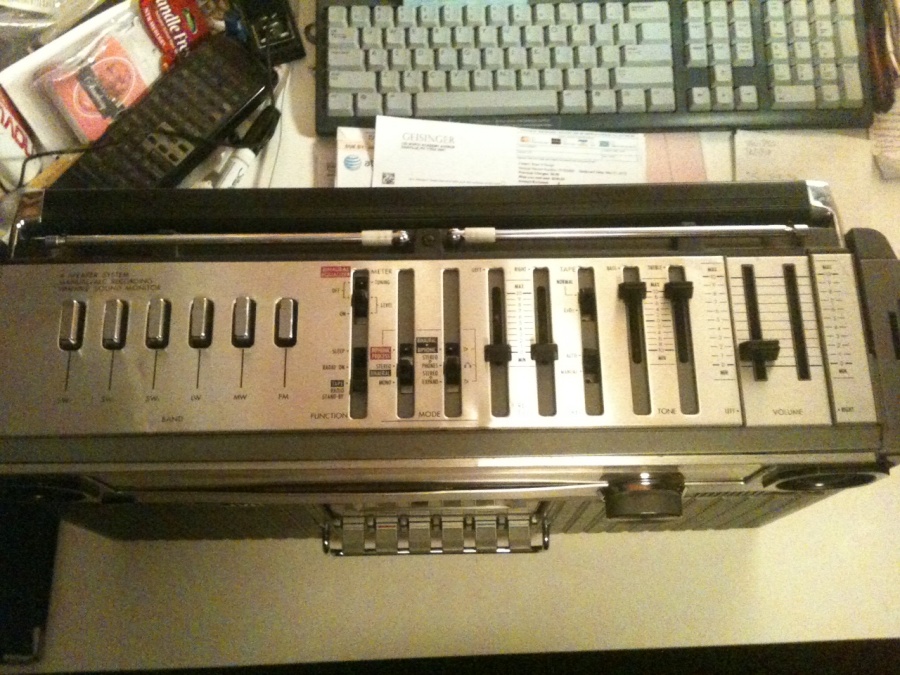

Camera phone pic is not that good.

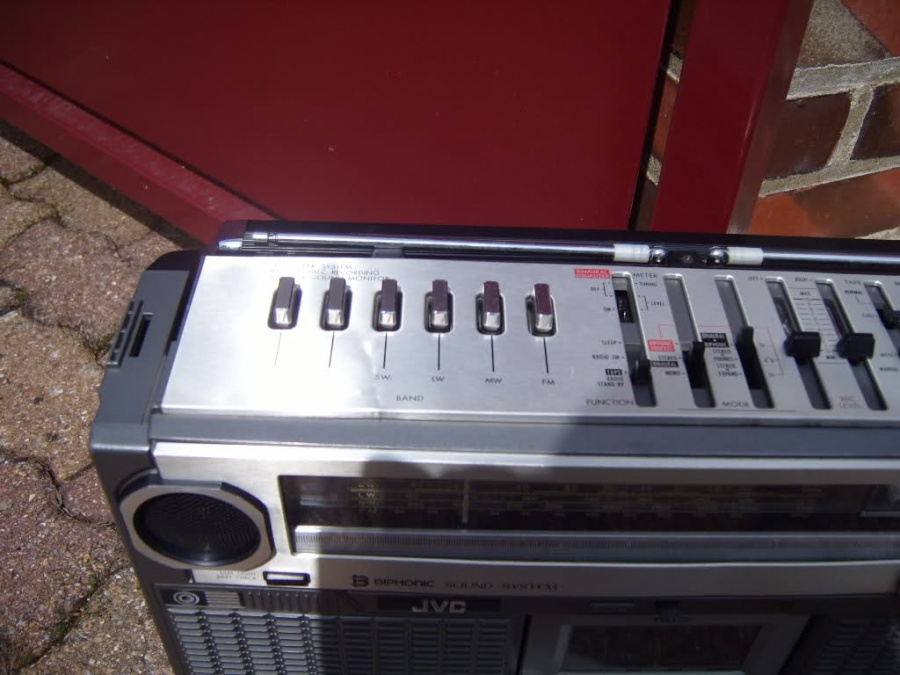

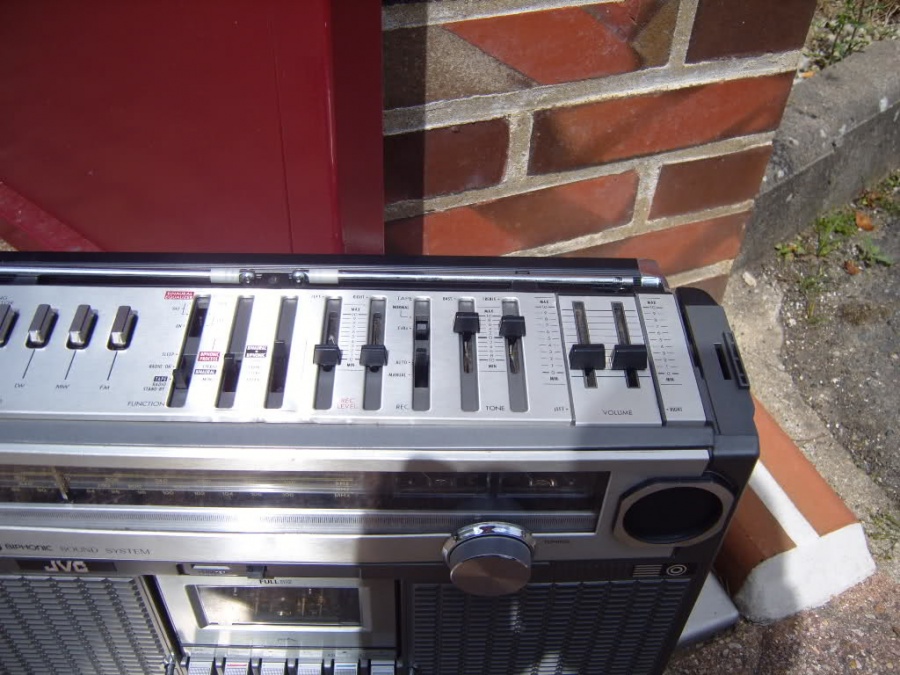

2nd and 3rd pic from previous owner.



[bredgeo]

If I had known about the volume slider that was defective, I have 4 of them lying around in France, I could have slapped one in there... :'-( :'-( :'-(

Well, it is good that she is feeling alive again!!!!! Or getting there!



[Spoofington]

If I had known about the volume slider that was defective, I have 4 of them lying around in France, I could have slapped one in there... :'-( :'-( :'-(

Well, it is good that she is feeling alive again!!!!! Or getting there!

No problem, you had spares lying around in France, no wonder I had trouble finding replacements!

Its looking and sounding good again!
Will get some pics when I get it all buttoned up.



[bredgeo]

Its looking and sounding good again!
Will get some pics when I get it all buttoned up.

AWESOME!!!!!!!!!!!!!!!!

Waiting for them pics!!!!!!!



[1phatboy]

she looking damn sweet



[Spoofington]

I put new volume sliders in this unit, unfotunately, I can't find the correct taper/slope so I put in linears and got the unit to work!

I put new belts on the unit and it played slow?
I checked for binding and proper voltage to motor, all good?
I stared at the tape mechanism for awhile and it was right in front of me!
The motor pulley is a double pulley, it was on upside down and I didn't do it!
So I flipped the pulley around and the tape plays at the correct speed.

So far it seems to be 100% functioning now!



[bredgeo]

WOW... Talking about a headache you had with it. I say,"Hats off to you!"

And who the hech put the motor pully upside down.... ?????????



[Maze83]

very fresh!!!!!
