Need Aimor ST804 cassette motor connector position

[Technic Freak Julian]

I need to know where the motor from the capstan solders to the board.



[hopey]

if you look carefully at the PCB it should be marked (Motor +, - ). Failing that try to find the service manual.



[Technic Freak Julian]

if you look carefully at the PCB it should be marked (Motor +, - ). Failing that try to find the service manual.

There are no markings and no service manual is available



[hopey]

Post a photo a photo of the PCB



[hopey]

RELI might know.

http://www.wikiboombox.com/Aimor%20ST-804



[hopey]

https://boomboxery.com/forum/members/reli.546/



[caution]

There are no markings and no service manual is available

Can you see any spots where it looks like a wire was cut?
How about the solder, does it look different in some places, like it was recently re-melted?



[Technic Freak Julian]

Can you see any spots where it looks like a wire was cut?
How about the solder, does it look different in some places, like it was recently re-melted?

I resoldered it and it was me who cut the motor off but I don't remember and no I always twist the wires off



[Reli]

It goes to the corner of the board right next to the door eject mechanism.



[Technic Freak Julian]

It goes to the corner of the board right next to the door eject mechanism.

Do u have a photo maybe?



[Technic Freak Julian]

It goes to the corner of the board right next to the door eject mechanism.

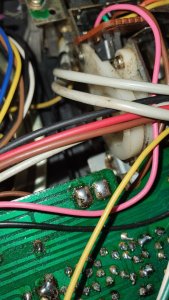

U mean Here?



[Technic Freak Julian]

It goes to the corner of the board right next to the door eject mechanism.

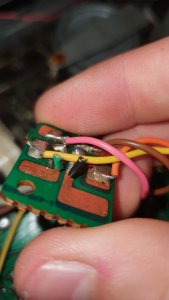

And where do these connect?



[docs]

Obviously this should go without saying but anyway, always take photos when you remove wires or work on a unit where you break it right down.



[Technic Freak Julian]

Obviously this should go without saying but anyway, always take photos when you remove wires or work on a unit where you break it right down.

It was years ago when I was a kid I didn't care than but know I do the motor is now connected but it doesn't turn when I press play



[docs]

Check voltages at those wires on the pcb with play pressed. If no voltage, either the wires are in the wrong place, or there may be a leaf switch in the deck which is broken.



[Technic Freak Julian]

And where do these connect?

Check voltages at those wires on the pcb with play pressed. If no voltage, either the wires are in the wrong place, or there may be a leaf switch in the deck which is broken.

That's only the record switch? Or is it also the play switch



[docs]

Mechanically on the deck when you press play, it may engage a small leaf switch to tell the motor to turn on. A leaf switch is normally connected to two small wires.
I do not know this deck but that would be my first guess.



[Reli]

U mean Here?

Yes



[Technic Freak Julian]

Y

Mechanically on the deck when you press play, it may engage a small leaf switch to tell the motor to turn on. A leaf switch is normally connected to two small wires.
I do not know this deck but that would be my first guess.

Yes I found it somebody (not me) cut the wires for it of? We're do they go?
