JVC RC-M70 Autostop problem

[Funkateer38]

a JVC RC-M70 with a AUTOSTOP problem after changing the belt of the same size.
Ø = 72mm x W = 3.5mm x TK = 0.5mm TL = 226.2mm BF = 113.1mm , Flat Belt

It starts to read, advances and returns normally and after a few seconds, the mechanism starts to click endlessly.

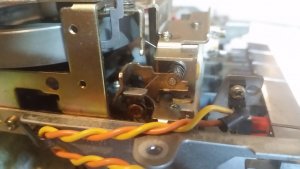

I have a doubt about the solenoid and peripheral springs see attachments

Would you have a diagnosis and solution please

In advance thank you



[Nari]

I have similar problem sometimes while playing cassette and always at the end when auto-stopp have to stop the motor.



[docs]

In my experience, auto stop has usually been clutch pads being worn and potentially belt size slightly out. But you have to make sure pivot posts are clean and gunk free along with general deck degreasing.



[Nari]

thanks, I will try to clean once more and inspect parts..



[pap]

Hello
I'm re-launching the subject,
did you manage to solve the problem?
if yes, you can explain
thank you



[Funkateer38]

Hello, excuse me for delay.
I resolved by changing the flat belt with good size : FBS9.6 Belt FRM9.6 Flat Belt, bought from KP Components Inc.
Hope it helps U
Best regards



[pap]

Hello, excuse me for delay.
I resolved by changing the flat belt with good size : FBS9.6 Belt FRM9.6 Flat Belt, bought from KP Components Inc.
Hope it helps U
Best regards

hi Funkateer
thanks so much
best regards
