Hifi "RATEKASE"

Status
Not open for further replies.

Radicase

Member (SA)
Hello everyone!
I'm Radicase newbie from Japan.

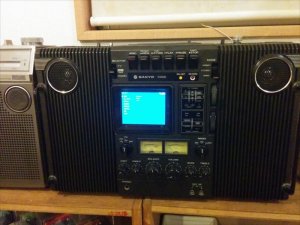

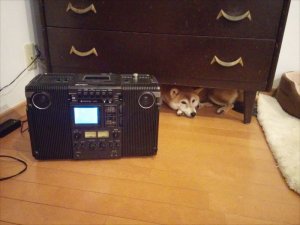

Recently, I finish one of my project "Hifi RATEKASE".
I customized Sanyo T-4100 Stranger.

[video=youtube;WVM0YS_yYIs]https://www.youtube.com/watch?v=WVM0YS_yYIs[/video]

RATEKASE means TV boombox and it named JVC maybe at 30 years ago in Japan.
It powered by Raspberry Pi + Hifiberry + OSMC + Tripath class-T digital amplifier.

I'd like to show how to build it!


Attachments

  • stranger03s.jpg
    69.3 KB · Views: 11
  • stranger02s.jpg
    59.4 KB · Views: 11

Radicase

Member (SA)
Thank you every one :-)
I'm happy to watch my post.
I'd like to attach many photo with text, but I confused and maybe I need to training right now.
But I'll post the many picture.
It is much better to explain than my poor English :rock:


caution

Member (SA)
Hajimemashte :-) I have considered doing something like this, you did a fantastic job!
Thanks for joining us here to share your work :-)


Radicase

Member (SA)
Thank you for warm welcome!!
I just prepare to attach the photo, I post it :rock:

First Look

Open the box

Inner

Remove the TV tube

TV tube

Front Panel


New LCD Monitor

Open the LCD Monitor

Back Inner


Remove the board


Radicase

Member (SA)
Thank you to the request. I'll post more photos :rock:

North Flat Japan Tripath TA2020 Digital Amplifier Kit(Discontinued)

Tripath TA2020 Chip
[sharedmedia=core:attachments:25484]

DC Converter 12V and 5V Assy

[sharedmedia=core:attachments:25483]

Raspberry Pi 2 + Wifi Dongle (Connect Wireless)

Hifiberry DAC+ Standard RCA Hifi I2S DA Converter
Absolutely Hi Fi Sound!!


DC Converter Setting

OSMC(New Virsion of XBMC) OS check

Small Monitor Test


Setting with TV (I can't read text on the small monitor!)


[video=youtube;51SDcKMO_TY]https://www.youtube.com/watch?v=51SDcKMO_TY[/video]

If you have any questions, I'd like to answer.
But It is very sorry to, may be it become my English training :-P


Line Out

Member (SA)
Are those 4x6" woofers? If so, Sinuslive SL-150 could be a nice choice, if the magnet isn't too big. I am not sure, but I have a feeling that I've seen also a version with neodymium magnet, that has the magnet on the front side.

At some point Sinuslive had a 2-way component kit with Neo 25s tweeters.

Some random shops that have those:
http://www.prohifi.cz/reproduktory-do-auta/sinus-live-sl-150
http://www.carhifi-profi.cz/reproduktory-do-auta/00046-sl-150-neo-25s.html

Visaton FR 4x6 X could also be ok, its a dual cone driver. Though it has much worse sensitivity, 87dB, as the SL 150 is 90-91dB. This woofer can't produce much bass either.
http://www.ebay.de/itm/Visaton-FR-4x6-X-4-Ohm-Breitbandlautsprecher-/271767212530?hash=item3f469691f2:g:5h8AAOSwxYxU1Mm9

TangBand has two 4x6 models W46-1316N and 1316SM, but they have a more "square" oval shape than conventional standard size and probably wont fit. They also have very low sensitivity (85-86dB) but high power ratings.


Radicase

Member (SA)
Thank you for Questions :thumbsup:
Martin123 said:
Can you recieve live television broadcasts?
Yhank you Martin123,

It can't recieve TV broadcasts in Japan.
In Japan, TV broadcasts is digital wave, and it protect with "B-Cas Card".(I'm not sure what?? and I'm not good at TV :-P )
So, Usually I watch You tube or Vimeo or listen to the music by network radio.

Mystic Traveller said:
Nice job done, Radicase! :yes: :thumbsup:
Thank you for sharing more pics.
Thank you Mystic Traveller,

I'd like to share more pics another project , I'll prepare :rock:

Line Out said:
Are those 4x6" woofers? If so, Sinuslive SL-150 could be a nice choice, if the magnet isn't too big. I am not sure, but I have a feeling that I've seen also a version with neodymium magnet, that has the magnet on the front side.

At some point Sinuslive had a 2-way component kit with Neo 25s tweeters.

Some random shops that have those:
http://www.prohifi.cz/reproduktory-do-auta/sinus-live-sl-150
http://www.carhifi-profi.cz/reproduktory-do-auta/00046-sl-150-neo-25s.html

Visaton FR 4x6 X could also be ok, its a dual cone driver. Though it has much worse sensitivity, 87dB, as the SL 150 is 90-91dB. This woofer can't produce much bass either.
http://www.ebay.de/itm/Visaton-FR-4x6-X-4-Ohm-Breitbandlautsprecher-/271767212530?hash=item3f469691f2:g:5h8AAOSwxYxU1Mm9

TangBand has two 4x6 models W46-1316N and 1316SM, but they have a more "square" oval shape than conventional standard size and probably wont fit. They also have very low sensitivity (85-86dB) but high power ratings.
Thank you Line Out,

Thank you for your adovice!!
I'm not sure about the speaker! And I'd like to know such kind of information :thumbsup:


goodman

Member (SA)
thanks for the photos. If I understand correctly:
You use only the speakers from this boombox. Radio and cassette don't work.
Raspberry computer connects wirelessly to the Internet.
Sound is from new amplifier and old speakers.
Monitor is connected to a combined 3.5 mm audio-video output.
Use remote control for all functions.


Radicase

Member (SA)
goodman said:
thanks for the photos. If I understand correctly:
You use only the speakers from this boombox. Radio and cassette don't work.
Raspberry computer connects wirelessly to the Internet.
Sound is from new amplifier and old speakers.
Monitor is connected to a combined 3.5 mm audio-video output.
Use remote control for all functions.
Thank you for question, goodman!
Yes, I use only speakers from this box.
Monitor is connected to NTSC 3.5mm audio-video output.
However,OSMC can't control hardwere digital volume with Hifiberry.(May be)
Volumio Hifi Music Player can control hardwere digital volume from the browser.
At first, I start with Volumio Music player, but monitor view is very poor.
And recently, I find the OSMC support the I2S DAC board like Hifiberry.
So, I replace the "Cont" variable resistor for volume of Digital Amplifier.

And if it connect to the HDMI TV, It can control TV Remote, but if it use the NTSC
Monitor, it can control only from Kore(Smartphone software).


Radicase

Member (SA)
Sorry, I mistake the reply. I posted same one. Can I delete this reply?


Attachments

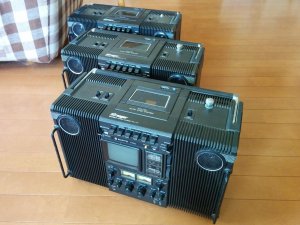

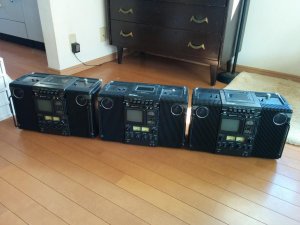

  • 3Stranger-1.jpg
    86.9 KB · Views: 8
  • 3Stranger-2.jpg
    69 KB · Views: 7

ralrein1

Member (SA)
WOW,there's only one thing better than owning one Stranger.That's 3 Strangers!Oh and by the way your English is just fine sir.😁😁😁
