Fixation powersupply

[Hurb]

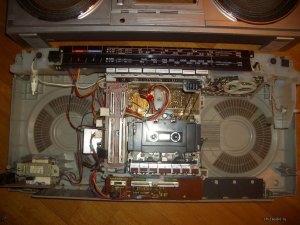

Hi guys, I'm having trouble fixing the circuitboard of the powersupply in the cabinet... I opened mine up because is was loose and I couldnt fit the wire/plug... hope the picture makes things clear....



[BoomboxLover48]

It has to slide inward like a drawer. The ac plug in socket will align with the hole on the side to fish the female AC plug wire.



[Hurb]

Thx! I thought it had to be something like that but couldn't get it done...I will try it again. Looking at the power supply itself; it looks like its not the original, could that be the case with the circuit board too?



[caution]

I think that is a different transformer. The original one has a corner cut off. Look at the open unit



[Hurb]

Great stuff!! Was looking for it in in the exploded views I have but couldn't find this.... I'll let you now if it was a succes....



[BoomboxLover48]

Found a picture of it too....



[caution]

Yep that's the pic I found. I zoomed in and brightened it up a bit though



[BoomboxLover48]

Yep that's the pic I found. I zoomed in and brightened it up a bit though

You are the best!

Yep that's the pic I found. I zoomed in and brightened it up a bit though

I was lazy to open up my like new one....



[Northerner]

Yep that's a different power supply. One of mine I had to replace with one from a GF575 and modify the fitting
