Another GF 9696 back in the game

Status
Not open for further replies.

soundsyztem

Member (SA)

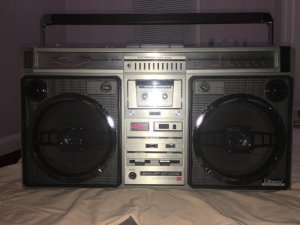

Just got this Sharp all back together and sounding very nice. Box now has fully functioning cassette deck after replacing belts and doing the fuel line for capstan rubber repair. Belts used were frw 10.1, scx 7.0, and scx 7.4. Fuel line used was about 14mm in length by about 6mm in diameter (thanks again Boomboxery for instruction on this repair). Let me know if any pictures are needed as I took a few when it was all opened up


Attachments

  • 744F7E06-842E-46C5-8568-317027DCD313.jpeg
    93.1 KB · Views: 14

Fatdog

Well-Known Member
Staff member
Man, those GF-9696 boomers are some sexy beasts. :drool: They aren't too good for today's rap bass, but for classic rock and such... dang!! Very nice!
