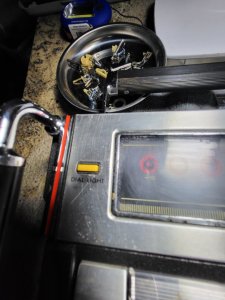

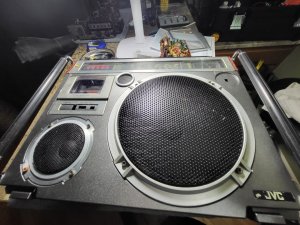

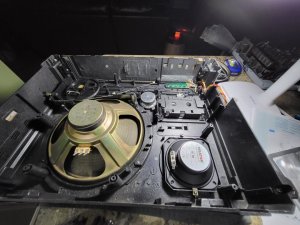

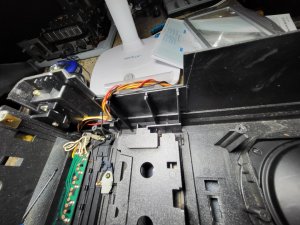

Greetings need a little help; I picked up this old relic some while back and just now getting around to cleaning, and servicing it to the best of my ability and stuff! Well, I forgot to take pictures of the wiring behind the pushbutton light and I can't remember how it's supposed to go back together. If you have one of these things and don't mind...take some close-ups of your unit fully assembled go give me a guide so I can finally finish reassembling this thing. Oh, I'm not sure if it's going to work but I hope it will. Lights flashed, and I could hear sound via the headphone jack but no output to any of its 3 speakers. Any help would be greatly appreciated. See my images attached.
Attachments
-
180 KB Views: 9
-
164 KB Views: 10
-
130.5 KB Views: 12
-
209.4 KB Views: 10
