Hitachi TRK 9100E Can't find aux port?

[meowwentthedino]

Hi all,

I've got a Hitachi TRK 9100E that I can't find the line in port on, I can see at the rear it has the phono jacks, speaker out, and mic port, but there is a mysterious 5pin din port called rec/play jack I am wondering if that is where I could pop in a line in on the boombox itself.

There is no direct aux itself as far as I can see


Any advice would be great!



[AE_Stereo]

Please post photos of the Jacks available and also the Function Switches.



[meowwentthedino]

Please post photos of the Jacks available and also the Function Switches.

It has an option for line in, and on the rear a play/rec din plug no line ii jack clearly labelled



[AE_Stereo]

It has an option for line in, and on the rear a play/rec din plug no line ii jack clearly labelled

From the front function switch, it looks like the deck has both Line In and Phono in functions.

The photo of the rear side that you have posted is a thumbnail only (small image), and hence not readable.
But, based on your description, The DIN plug carries both Line In and Line out through its 4 pins plus the common ground.

You need to buy a DIN 5 pin to 4 RCA cable like this:

Once the DIN plug is inserted, two of the RCA pins will be Line Out and the other two will be Line In. You can find out that by trial and error!
You can get the cable from ebay or Aliexpress.com.



[meowwentthedino]

From the front function switch, it looks like the deck has both Line In and Phono in functions.

The photo of the rear side that you have posted is a thumbnail only (small image), and hence not readable.
But, based on your description, The DIN plug carries both Line In and Line out through its 4 pins plus the common ground.

You need to buy a DIN 5 pin to 4 RCA cable like this:

Once the DIN plug is inserted, two of the RCA pins will be Line Out and the other two will be Line In. You can find out that by trial and error!
You can get the cable from ebay or Aliexpress.com.

View attachment 58243

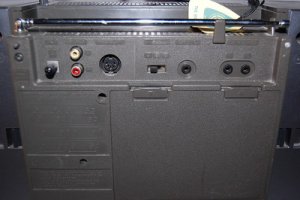

Thanks for that advice, I was about to purchase a 5P Din to RCA (red/white only) I've took a higher res pic but this is the main rear, no other ports spare the speaker L/R mono 3.5 jacks.

I'll grab a 5pin din to 4RCA and a 2RCA female cable see what happens when I hook stuff up, to it. if one works over the other I can always return them haha, on that note I did ask on reddit too and someone found via hifishark the owners manual and they have said the Din is only for recording and possibly the Mic input is the line in? but i am not sure at all lol



[AE_Stereo]

What are the RCA sockets marked Phono on the left? Is it working as Line In when the function switch set to Line In?
Many decks have common Line-in & Phono socket and the signal will be handled based on the function switch position.



[meowwentthedino]

What are the RCA sockets marked Phono on the left? Is it working as Line In when the function switch set to Line In?
Many decks have common Line-in & Phono socket and the signal will be handled based on the function switch position.

I've not tried that as of yet cause it's only marked phono, so I have a TT booked up to it which works over the phono but..... I'll give that a try tonight.



[meowwentthedino]

What are the RCA sockets marked Phono on the left? Is it working as Line In when the function switch set to Line In?
Many decks have common Line-in & Phono socket and the signal will be handled based on the function switch position.

Update! The 5pin din to 4 RCA worked!!
