Cassette deck part and how do I fix it?

Status
Not open for further replies.
dan

dan

Member (SA)
got my belts today so i decided to put them in. while i was in there, i noticed a plastic part had a crack.




the cassette plays, pause and stops fine but the FF and RW don't work. i noticed these parts fell out:

what do i do now?


dan

dan

Member (SA)
I managed to put it back together but if I try to ff or rw, that cracked plastic piece pops out and jambs against the flywheel. I wonder if i can use jb weld plastic weld to glue it? Should I glue only in the crack and clamp it or should I glue the top flat surface? Does that top flat surface on the plastic piece ever have to come in contact with anything?

BoomboxLover48

BoomboxLover48

Boomus Fidelis
I think that is the clutch assembly on the contact wheel for FF and RW!
A vital part in the transport mechanism.
You will be able to fix it or get a part.

That top white plastic lock got hardened, broke off with a split crack, and fell off. That plastic ring washer lock keeps the spring in place and function as a clutch mechanism. I think the other end of this contact wheel making contact with another contact wheel, engage with the tape supply reel axle for rewind, and take up axle for FF.

Inner surface of it got a channel to keep the spring in position. You might need the exact part from another M70 deck.
Our members here might have that part. It is a friction fit part. Once you push it in place, it will seat there.

There is a felt washer inside and which gives friction to the clutch mechanism.


Attachments

  • IMG_2337.JPG
    127 KB · Views: 29
BoomboxLover48

BoomboxLover48

Boomus Fidelis
dan said:
I managed to put it back together but if I try to ff or rw, that cracked plastic piece pops out and jambs against the flywheel. I wonder if i can use jb weld plastic weld to glue it? Should I glue only in the crack and clamp it or should I glue the top flat surface? Does that top flat surface on the plastic piece ever have to come in contact with anything?
Click to expand...
Nothing will fix the crack. The hole is made to have a nice friction to hold it in place.
You need that part. I would ask our members here.

dan

dan

Member (SA)
What about melting the crack together with heat from a soldering iron while the crack is clamped shut?

  • Like
Reactions: David
Superduper

Superduper

Moderator
Staff member
Is there a missing graphite retainer or clip at the end of the shaft? Check the end of the shaft, if it's grooved, it's designed for some kind of retainer. Maybe the parts can be retained if you install a tiny e-clip (or c-clip) to keep everything on the shaft.

BoomboxLover48

BoomboxLover48

Boomus Fidelis
dan said:
What about melting the crack together with heat from a soldering iron while the crack is clamped shut?
Click to expand...
They are not thermoplastics, they are thermoset types. One cannot melt and seal it.


dan said:
don't think there is a groove and clip.


the job of that plastic piece is to just hold the spring in place, right?

i wonder if these would work?

https://www.ebay.ca/itm/20pcs-Plastic-Spur-Gear-0-5-Modulus-T-18-Aperture-2mm-DIY-Model-Accessories-18T/183432728174?hash=item2ab5714e6e:g:uY4AAOSwc1FZxi6p
Click to expand...
It is definitely worth a try. Once it is a tight fit without making a crack that should work fine.
It is just a friction fit plastic piece.


There is a way!

1. Cut/slice uniformly a brass, aluminum or any rigid tube, or ring that you can slip tightly over that plastic.
2. If you don't get enough fit, slice off a layer from the crack and slip the ring over that plastic piece. Slicing off 0.5mm from the crack will give enough room to squeeze it to the shaft.

It is not running at a high RPM always, so there is no much unbalanced load to shift the dynamic equilibrium and cause issues.


This will do the trick! :yes: :yes: :-D

~Royce

  • Like
Reactions: Atomtan
dan

dan

Member (SA)

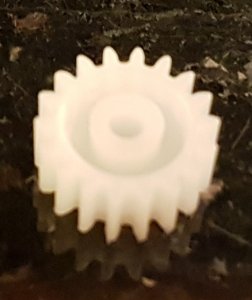

I went with the first gear, it is a 182A. It was a little bit too high and would occasionally touch the flywheel while winding the tape in one direction vs the other, so I took it out, got one if those Emery boards for fingernails and slowly sanded away at the gear on one face until I got it to a height of 3.5mm. The cassette deck works fine now. No issues. The best thing about that 182A gear is that it cups the spring like the original piece. I had to order a 70 piece gear assortment on amazon for 15 bucks just to get that one gear. Could not wait 3 months from china. Lol. I did order spares from china just in case i ever need them again. Here's a pic of the gear before i shaved down the height:

If one wants, you could cut away the teeth too but they didn't interfere. Besides, they provide cooling. ;)


Attachments

  • 20190422_052449.jpg
    262.2 KB · Views: 16
Transistorized

Transistorized

Member (SA)
It's times like this where I start going through my doodad drawers looking for whatnots...lol

If I don't have anything close that works, then I go to Lowes and brainstorm until I find something plastic that I can file down and drill a tiny hole in to fix.

Basically all you need is a round piece of plastic that has a tiny center hole that will tightly press down on the metal shaft.
